• Polypropylene melt blown cartridge

N95FON
Polypropylene melt blown cartridge

N95FON cartridges are made of extruded polypropylene with internal support and rigid molded polypropylene terminals. N95FON cartridges guarantee very high load capacity thanks to the double gradient double filtering layer.The first layer accumulates the coarsest particles while the second layer performs the final finishing by retaining the smaller particles.These cartridges are ideal for treating non-refined water with high presence of suspended solids (up to 1 ppm TSS) with heterogeneous particle distribution.

Create specific product details (PDF)


Print specific product data sheet (PDF)
Lead Time
Available in stock

More

Product type Polypropylene melt blown cartridge
Internal core Polypropylene
External core None
Hot sanitizing No
Heights 23" - 40"
Micron 1-10 µm; 5-20 µm; 20-50 µm; 50-90 µm
Endcaps types FON
Applications Water, Sea water

Description

N95FON cartridges are made of extruded polypropylene with internal support and rigid molded polypropylene terminals. N95FON cartridges guarantee very high load capacity thanks to the double gradient double filtering layer.The first layer accumulates the coarsest particles while the second layer performs the final finishing by retaining the smaller particles.These cartridges are ideal for treating non-refined water with high presence of suspended solids (up to 1 ppm TSS) with heterogeneous particle distribution.

They are made of extruded polypropylene. The polypropylene is melted and then sprayed with nozzles on a rotating mandrel, assuming a consistency similar to cotton candy. As the material cools down, it creates a rigid but porous structure. They therefore guarantee a very high capacity to retains suspended solids. These cartridges are ideal for treating slightly refined waters with a good presence of suspended solids (up to a maximum of 1 ppm) with an heterogeneous distribution of the particles.

Everblue filter cartridges are ideal for filtering water, beverages, wine, and liquids, as well as for the treatment of drinking and industrial water for food-grade use.

Download

DATA SHEET

N95FON | Polypropylene melt blown cartridge

DRAWING

N95FON | Polypropylene melt blown cartridge

Lead Time

Available in stock

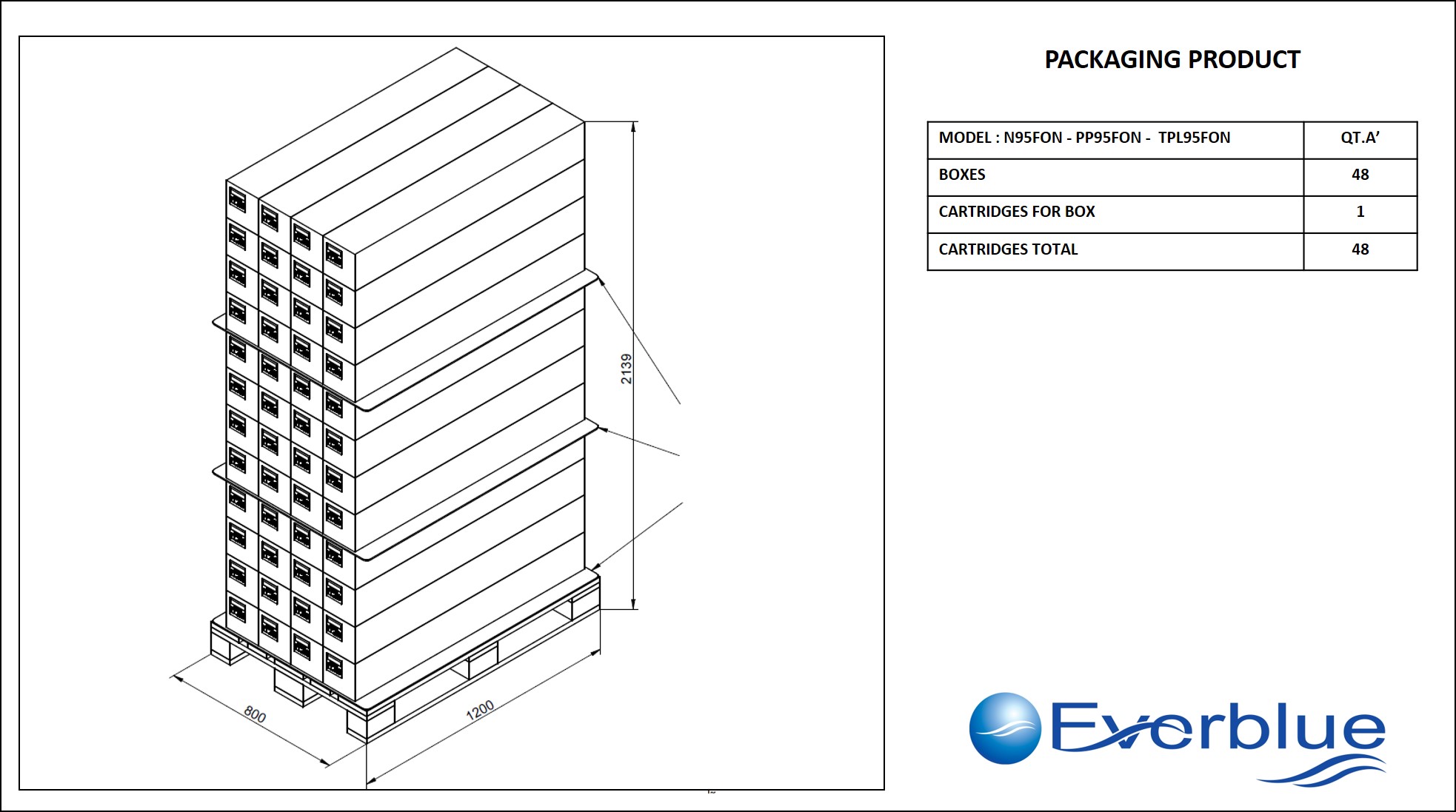

Packaging

Packaging Box
Width (x) 16 cm
Heigth (y) 118 cm
Depth (z) 16 cm
Weight 4 Kg

Casehistory

POLYPROPILENE HOUSINGS
REFERENCE
YEAR: 2025
POLYPROPILENE HOUSINGS INDUSTRIAL WATER
PRODUCT FILTERONE 40
FLOW RATE 60 m3/h (2 x 30 m3/h)
WATER BRACKISH WATER
APPLICATION RO PRETREATMENT
WATER USE INDUSTRIAL WATER
OEM CONFIDENTIAL (Italy)
END USER CONFIDENTIAL (Italy)
SECTOR INDUSTRIAL
POLYPROPILENE HOUSINGS
REFERENCE
YEAR: 2023
POLYPROPILENE HOUSINGS INDUSTRIAL WATER
PRODUCT FILTERONE 40
FLOW RATE 108 m3/h (4 x 27 m3/h)
WATER RO PRETREATMENT
APPLICATION BRACKISH WATER
WATER USE INDUSTRIAL WATER
OEM CONFIDENTIAL (Italy)
END USER CONFIDENTIAL (Italy)
SECTOR INDUSTRIAL
POLYPROPILENE HOUSINGS
REFERENCE
YEAR: 2022
POLYPROPILENE HOUSINGS INDUSTRIAL WATER
PRODUCT FILTERONE 40
FLOW RATE 60 m3/h (2 x 30 m3/h)
WATER BRACKISH WATER
APPLICATION RO PRETREATMENT
WATER USE INDUSTRIAL WATER
OEM CONFIDENTIAL (Italy)
END USER CONFIDENTIAL (Italy)
SECTOR INDUSTRIAL
POLYPROPILENE HOUSINGS
REFERENCE
YEAR: 2022
POLYPROPILENE HOUSINGS PROCESS WATER
PRODUCT FILTERONE 40
FLOW RATE 27 m3/h
WATER BRACKISH WATER
APPLICATION CIP
WATER USE PROCESS WATER
OEM CONFIDENTIAL (Italy)
END USER CONFIDENTIAL (Italy)
SECTOR INDUSTRIAL

Note

Ideal for water with suspended solids.
